Navigate Way Points

Driving by selecting a pre-registered waypoint from the drop-down menu

For illustrative purposes, the coordinates are given as name1, name2, and name3.

---

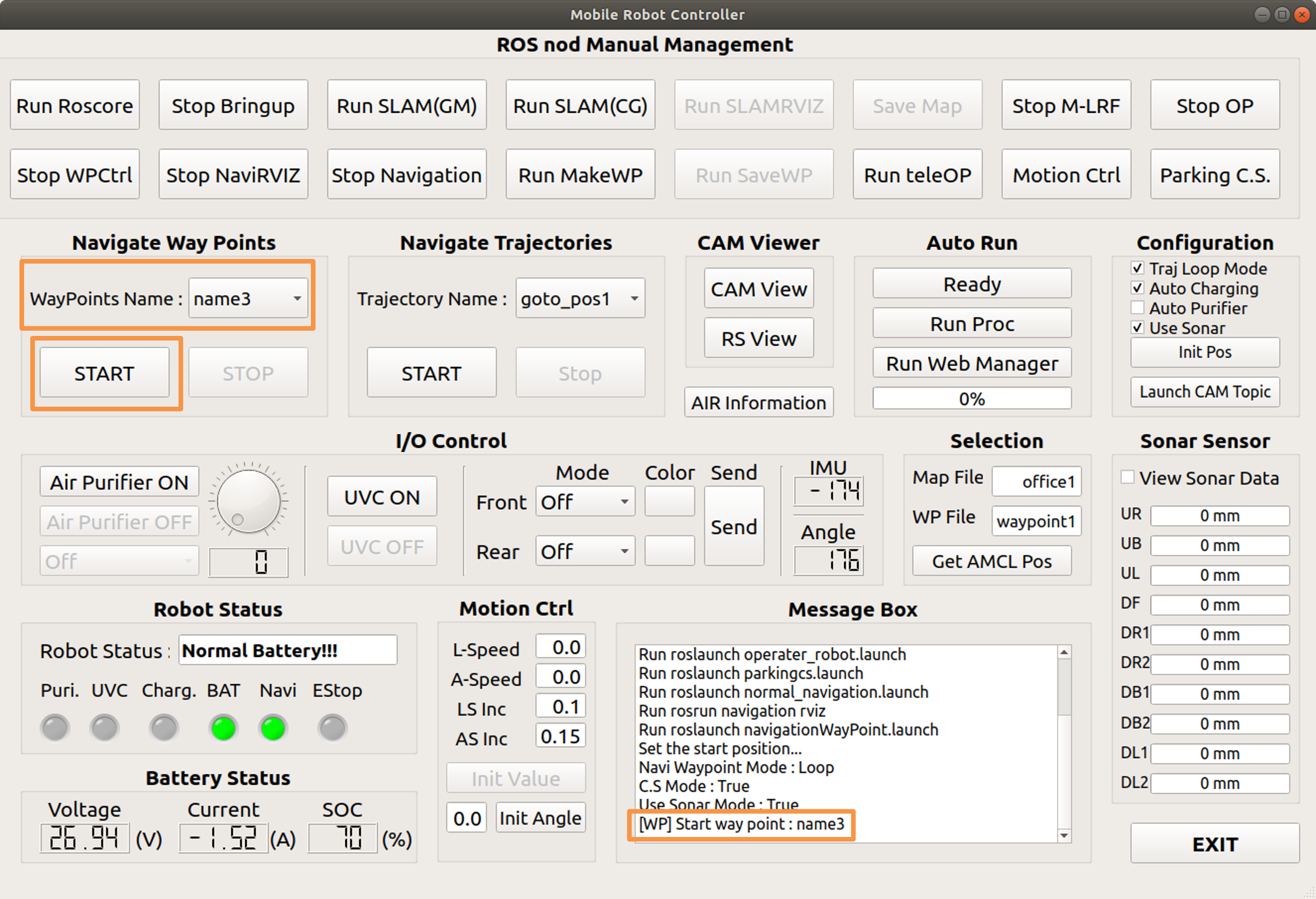

Go to name3 coordinates

• After selecting name3, press the start button. The start button is disabled, and the stop button is enabled.

• When you arrive at your destination, the start button is enabled and the stop button is disabled.

• It is displayed in the message box.

---

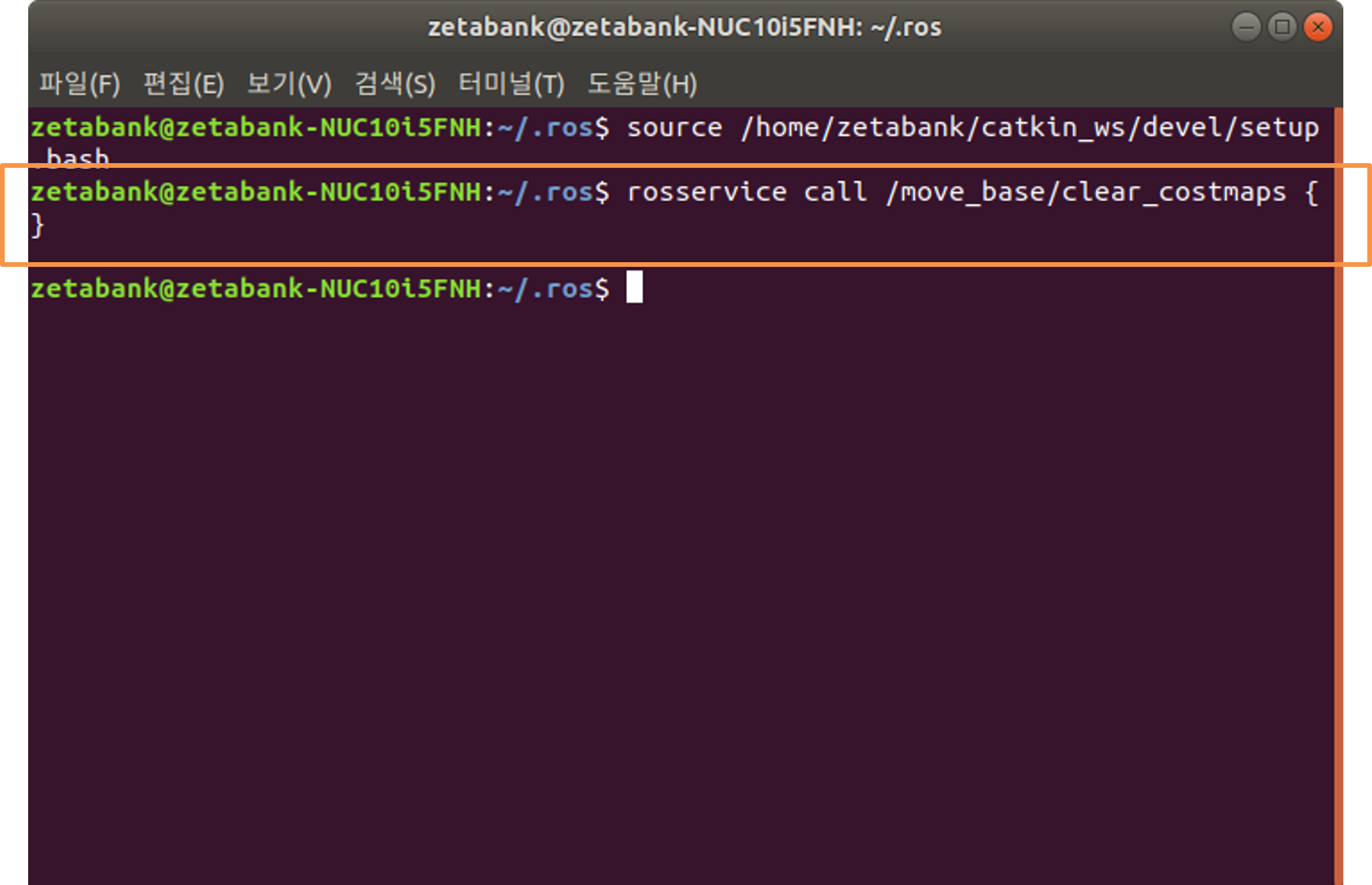

• A command is automatically entered and executed in the terminal, and this command serves to clear the costmaps.

---

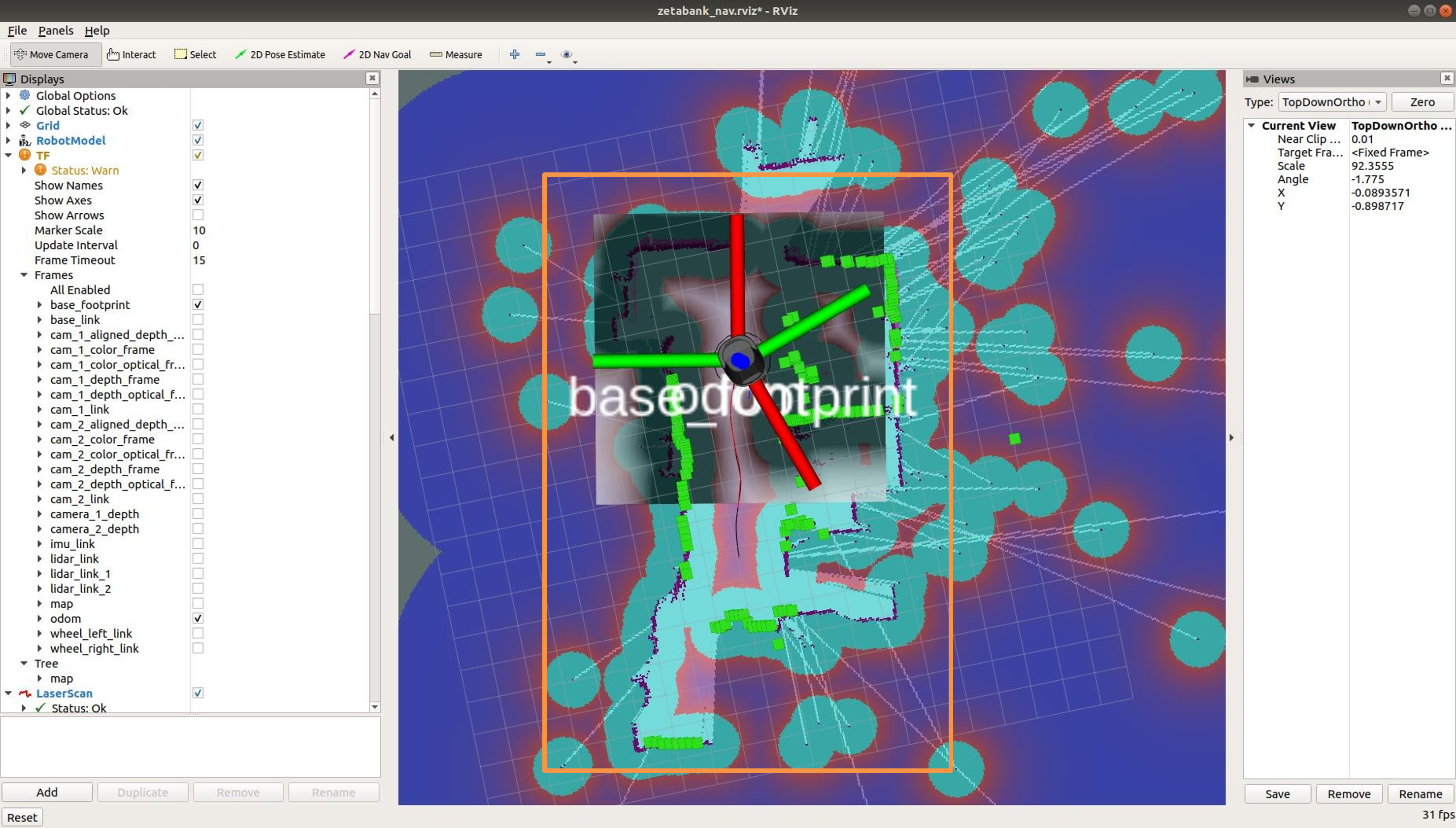

• When costmap is cleared, it moves to name3 coordinates.

---

---

Go to name1 coordinates

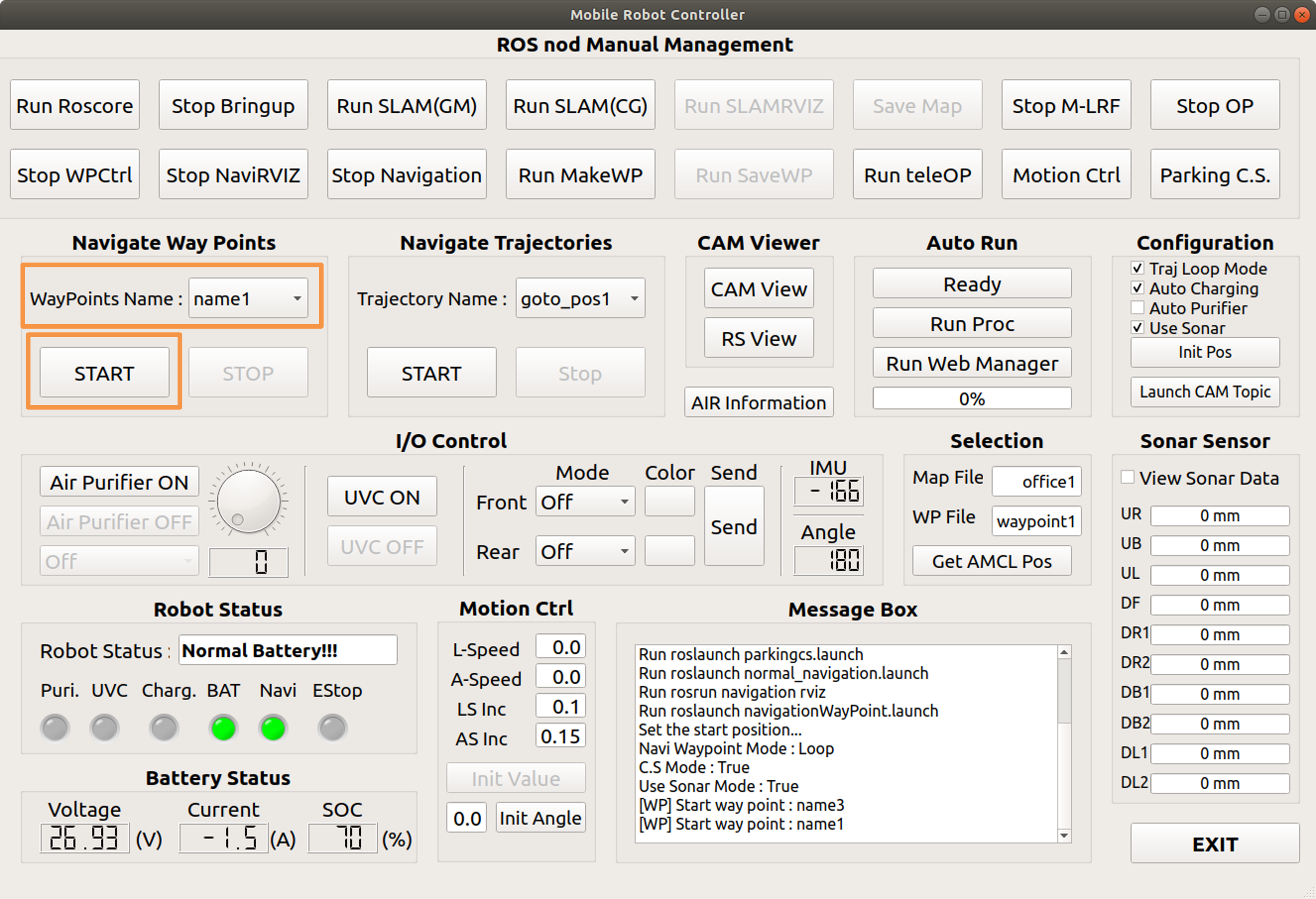

• After selecting name1, press the start button.

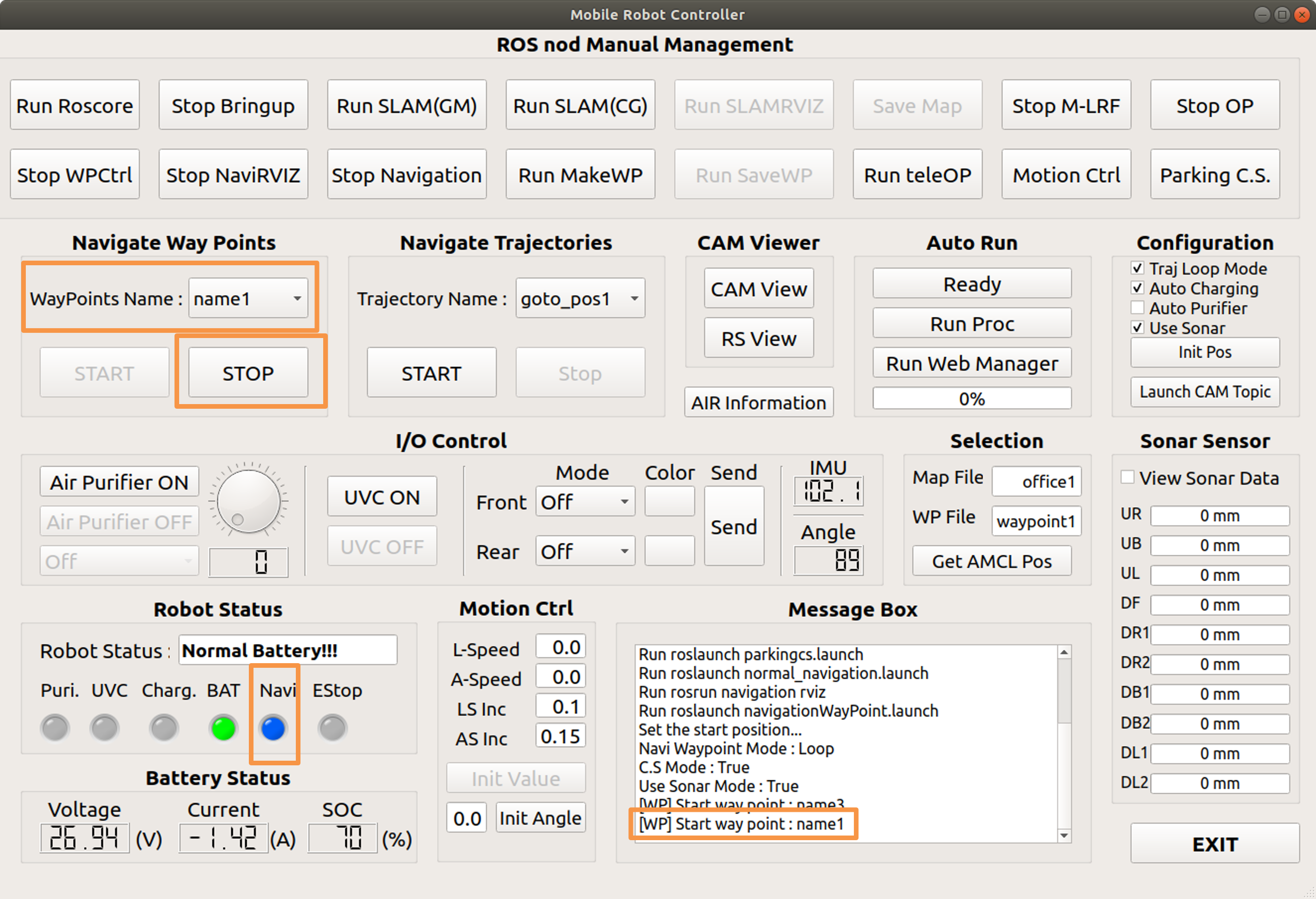

• The start button is disabled and the stop button is enabled.

• It is displayed in the message box, and the LED color under the navi changes to blue.

---

• When you arrive at your destination, the start button is enabled and the stop button is disabled.

• The color of the LED below the Navi will also change to green.

---

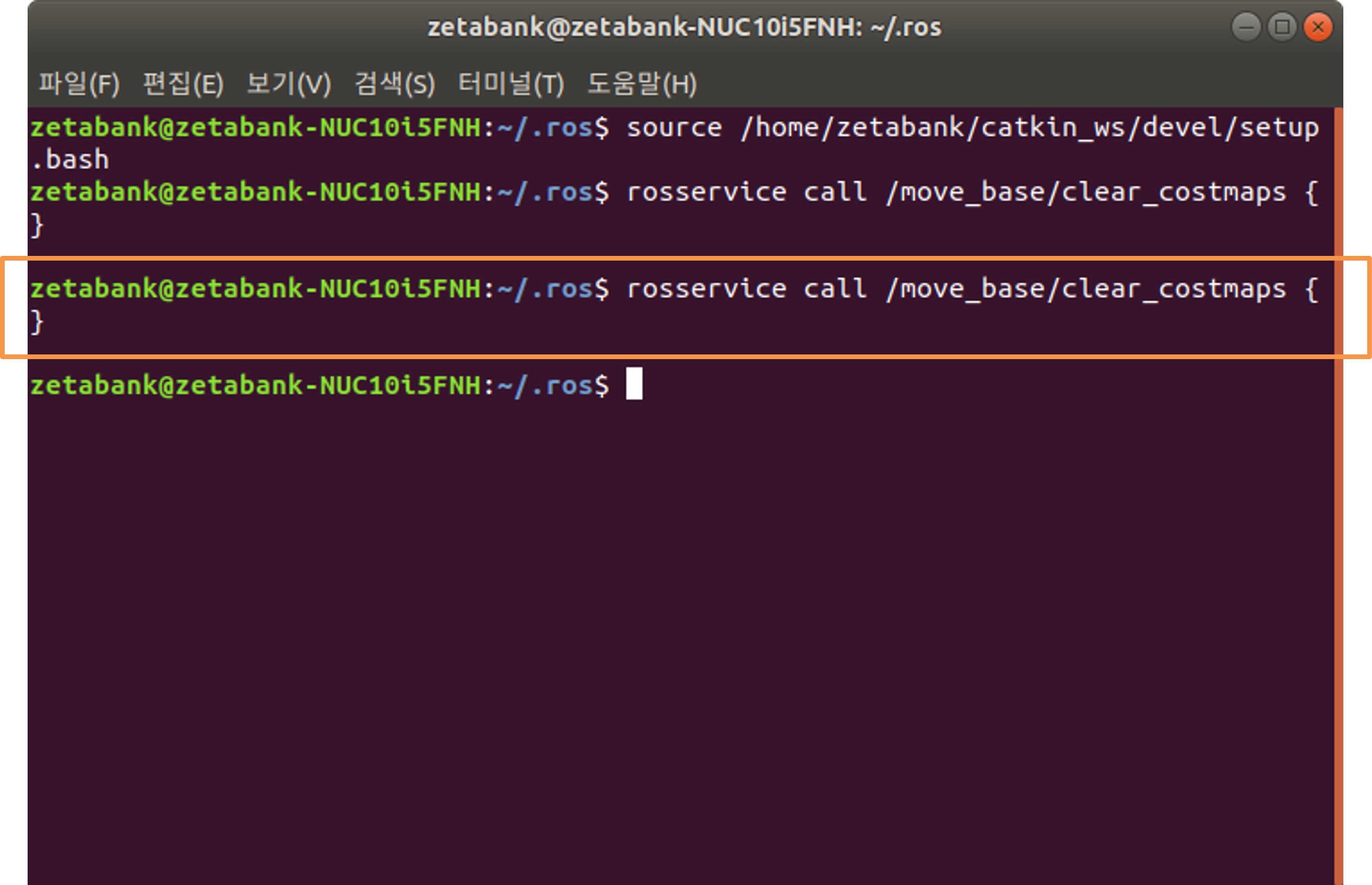

• A command is automatically entered and executed in the terminal, and this command serves to clear the costmaps.

---

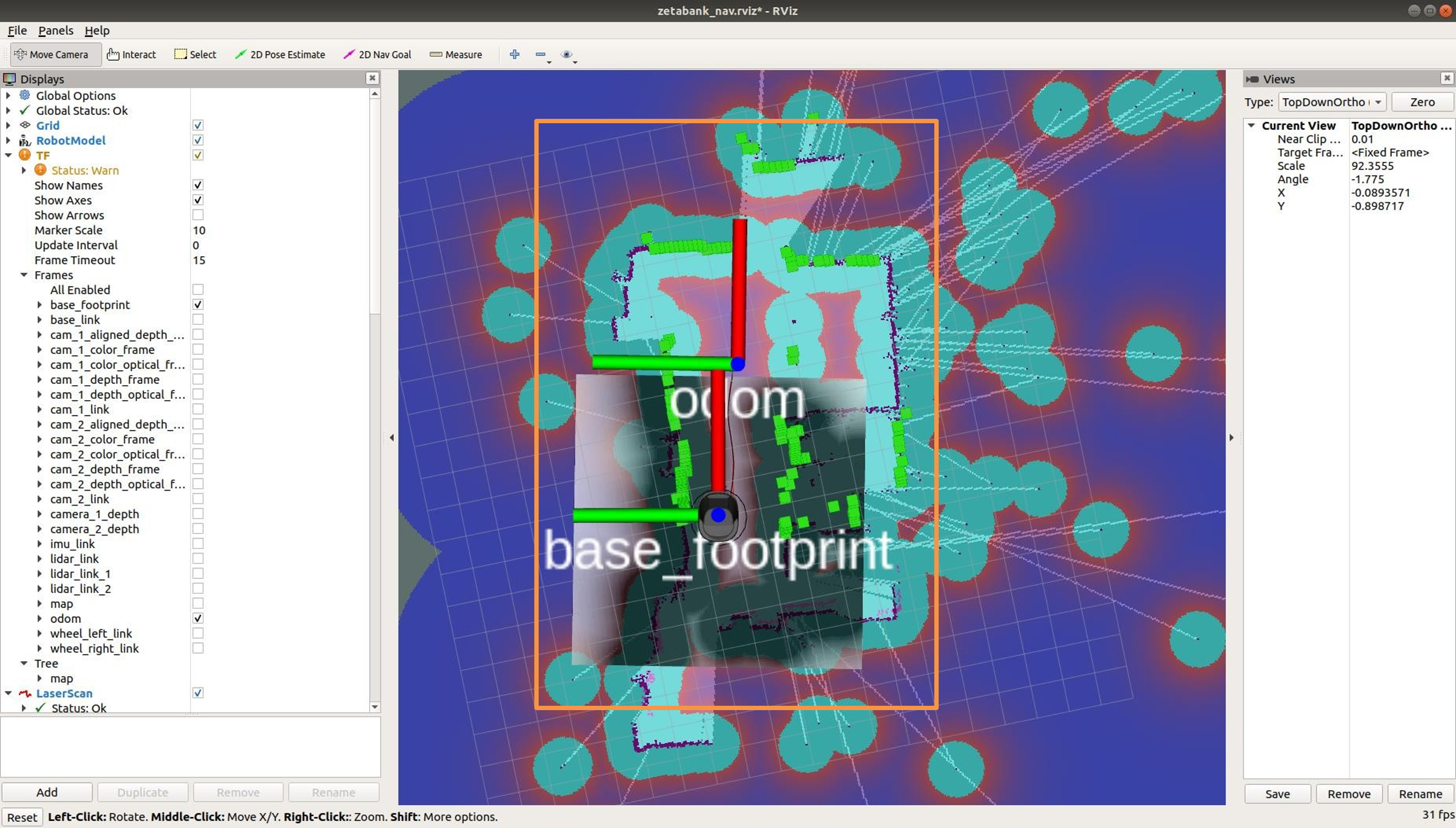

• When costmap is cleared, it moves to name1 coordinates.
